Apache Camel turns integration-test failures into a route-design checklist

Apache Camel has published a practical guide to nine integration-testing failure modes drawn from real projects, with fixes that reach beyond assertions into route design, serialization and application startup. The examples use the Citrus testing framework, but the post says the underlying problems apply regardless of the test tool.

Why green tests can still lie

The guide’s central warning is that distributed integration tests have many ways to pass without proving the intended behavior. A receive step with no body or header assertion, for example, establishes only that some message arrived. Camel recommends tying output to test input with a unique identifier, message key or a reliable subset of the body.

The same principle changes route design. An inline otherwise().log(...) branch is difficult to observe through Camel’s management API. Moving that branch behind a named direct: endpoint and assigning it a route ID gives tests a measurable exchange count. For branches that deliberately drop messages, the guide recommends testing the negative path with an explicit timeout rather than testing only the successful route.

Test the wire format, not the in-memory object

One of the more consequential examples involves JSON and Kafka. After unmarshal().json(), Camel holds a Java map. A unit test that mocks the producer can pass while the real Kafka serializer emits Map.toString() output instead of valid JSON. The fix is to call marshal().json() before sending to Kafka—and to keep expressions that inspect map fields before that conversion.

The post also calls out locale-sensitive String.format use. A decimal rendered with a comma on a non-English workstation can produce invalid JSON even when CI passes under an en_US locale. Using an explicit locale removes that environmental dependency.

Control time and startup

Timer-driven demo routes can pollute topics and exchange counts during tests. Camel’s pattern is to gate each scheduled route with its own configuration property and disable it in the test profile. Spring Boot components that connect to Redis or another service in @PostConstruct need similar control so test infrastructure can start first; the test can then seed data explicitly.

Two routing details round out the checklist. REST DSL routes may merge a direct: consumer into the HTTP route, so tests should exercise the HTTP boundary rather than assume that the direct endpoint remains addressable. Synchronous multi-hop messaging can also deadlock when the test thread both invokes a route and tries to simulate a downstream service; the guide treats that as an orchestration problem, not an assertion problem.

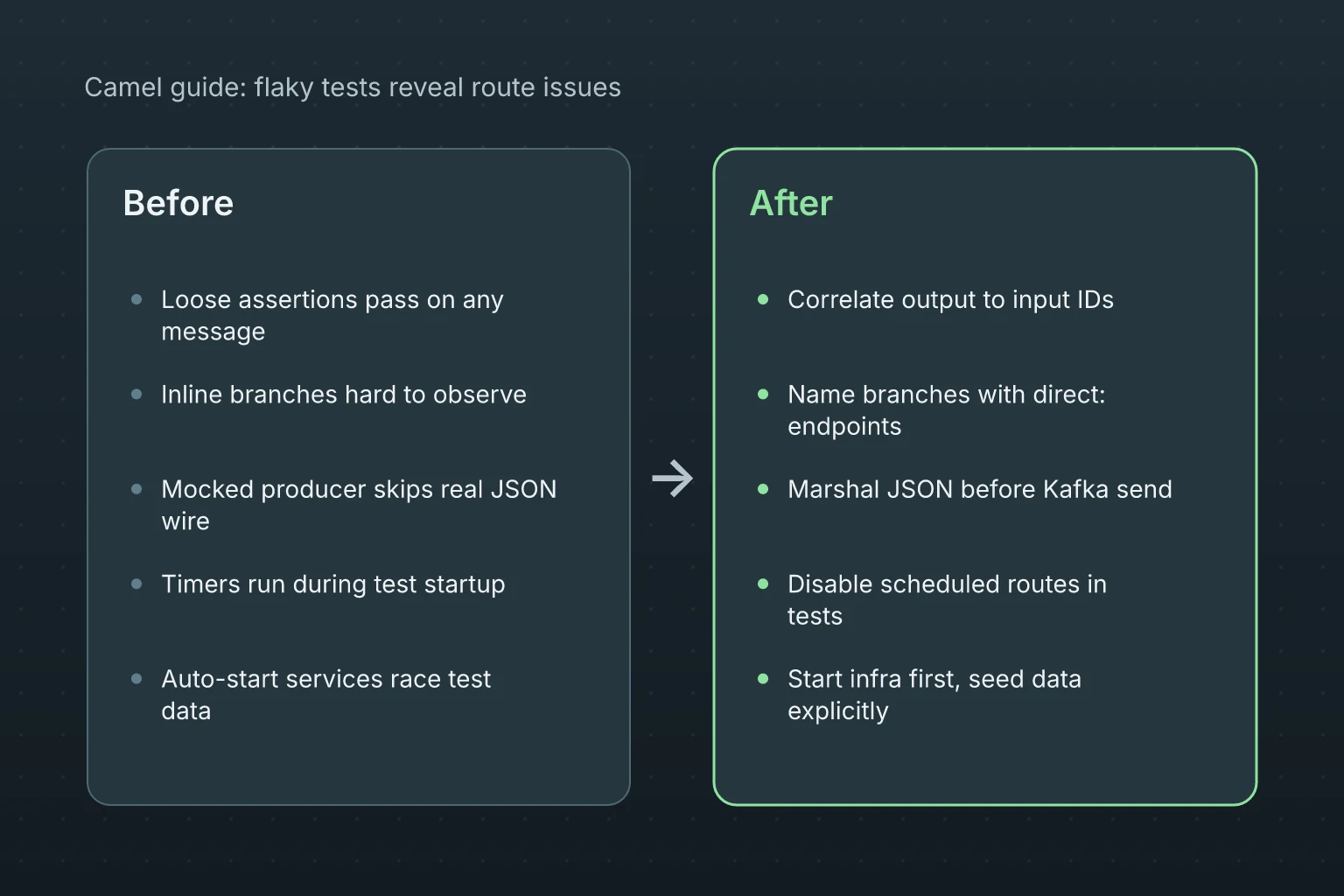

The useful takeaway for platform and integration teams is straightforward: flaky Camel tests are often an architecture signal. Name the paths that matter, assert correlation to the input, cross the real serialization boundary and make background work controllable. That produces tests that describe the deployed route rather than a friendlier in-memory approximation.
